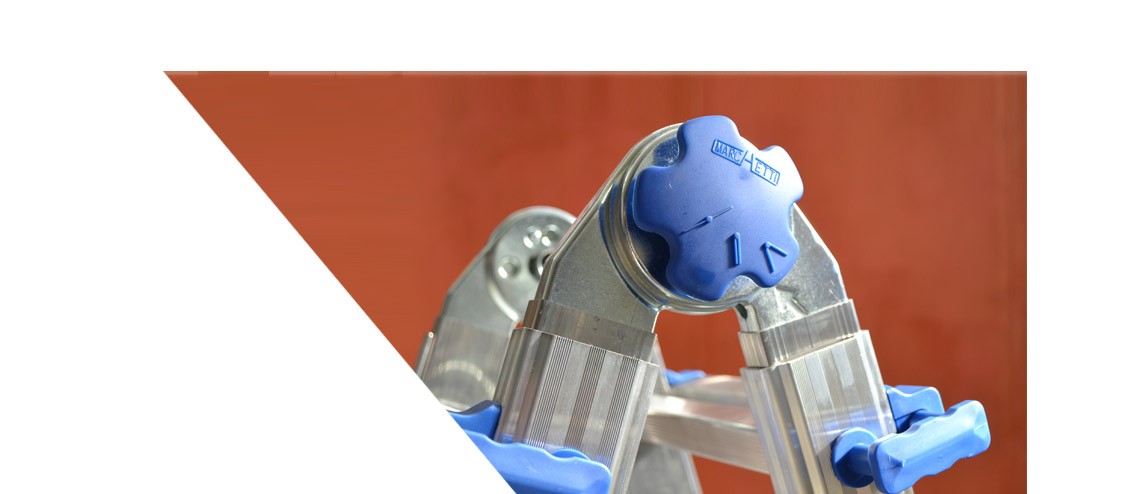

EQUIPE is a telescopic ladder in aluminium, can be used in extended, double or adjustable position.• EN 131 tested and certified (model EQU33, EQU34 and EQU44), Load capacity kg 150• Pitch between site rung mm 280• Knurled anti-slip mm 30x30x1,5 rungs• Internal upright section mm 60×25• External upright section mm 68x33x2,8• Quick-set hinges• Nylon coated safety block hooks• Extra-strong ergonomic anti-slip rubber feet for best adherence to the ground• PATENTED galvanized steel hinge-handle with 3 steel pins
.jpg)

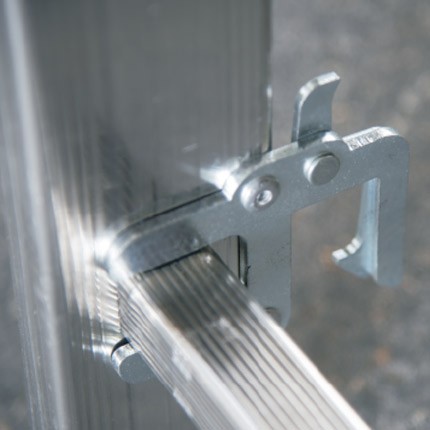

ORANGE is a 2 and 3 elements ladders range. For professional use, pratical and easy to use, renewed in detail: steel hinge, rungs 28×28 mm guaranteed minimum area and antiopening strong belts. Pitch of rugs 280 mm.• made of electro welded aluminum.• Grooved profile.• Rungs 28×28 mm in anti-slip extruded aluminum with rounded corners• Stabilizer base with not-slip soft compound PVC feet• Pitch between rungs mm 280• Anti-overturning device on third element• Anti-slip PVC feet and base stabilizer
.png)

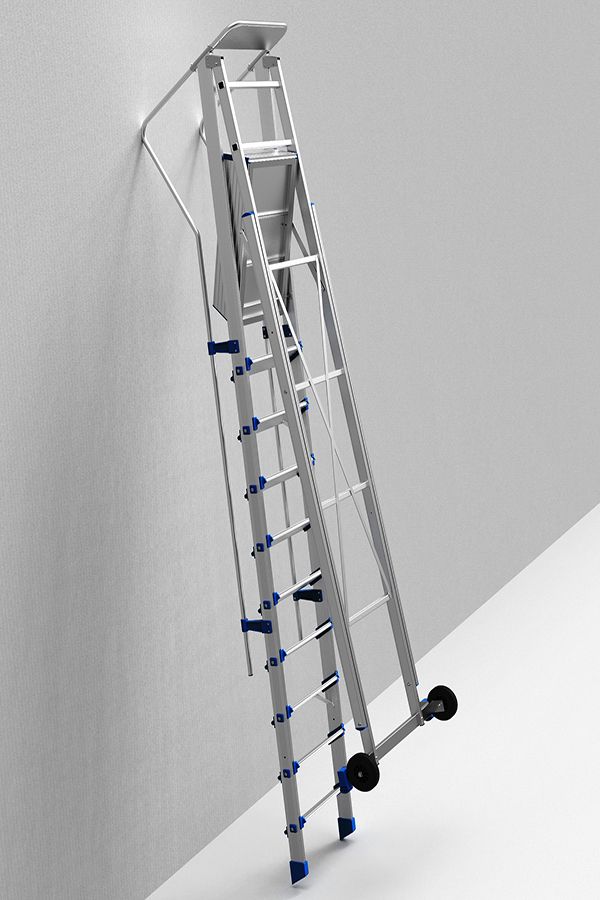

Fortezza is a foldable ladder with a large workplatform (760×440 mm), 1,00 m parapet and aluminium side handles to climb safely. The wheels of diameter 175 mm and the side handles facilitate movement. The peculiarity of FORTEZZA is to have the back side inclination to 88° that allows to get closer to the work area. For this Fortezza is used in warehouses, libraries, cemeteries, formwork, airports, special machinery pich between steps 280 mm.
.jpeg)

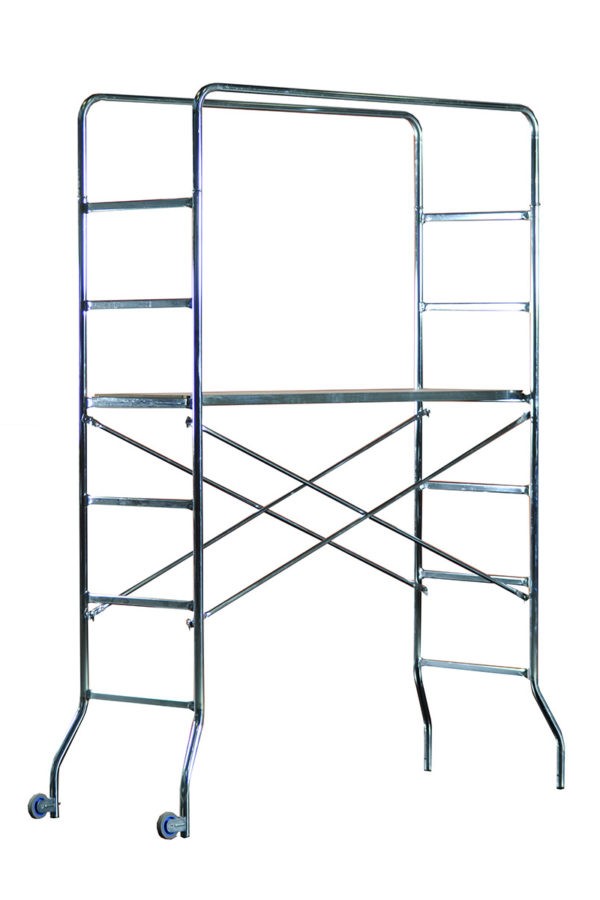

SUPERTRIO Made of galvanized steel; allows total dismantling. Devised for DIY, decorating or small maintenance jobs, quick to assemble and dismantle

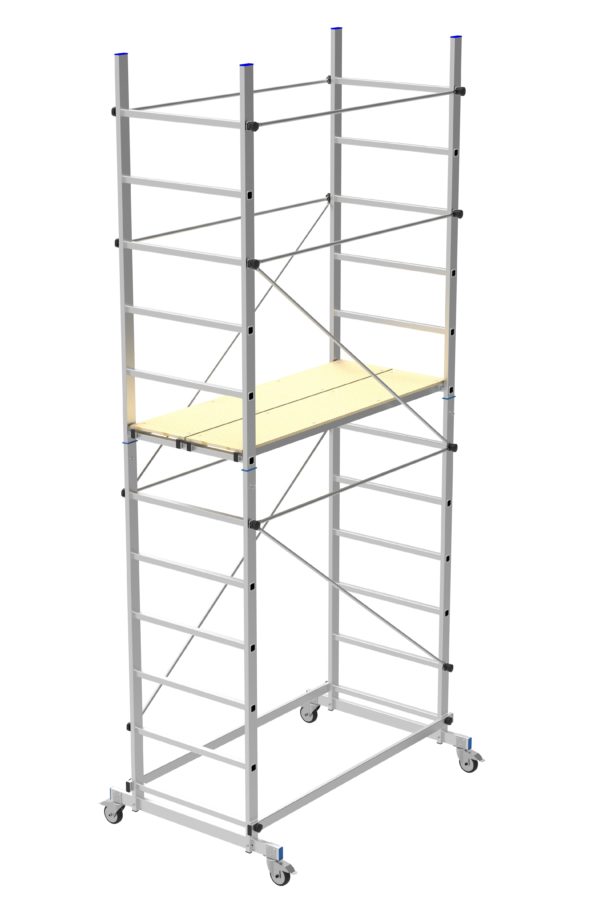

ZEUS is an Aluminum scaffold and the easy movement is his strong point, thanks to the 4 wheels 100 mm, with brakes. The fast assembly is garanted by the one-of-a-kind coupling of the towers. Total height m 3,60. Workplatform included.

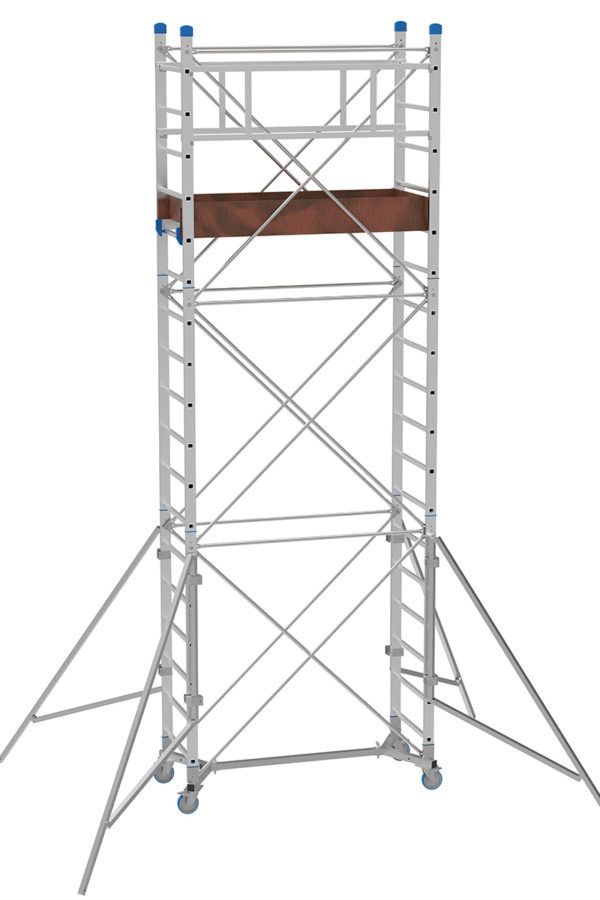

OLYMPO The Professional aluminum scaffolding. Wheels with brake 150 EN 1004. Fast assembly thanks to the easy engagement. Work platform with trapdoor in resin and aluminum frame. Use without anchor to the wall. Steel base for use without ballast. Capacity kg 200. MAX working height 8mtr with 5 towers • BASE EN 1004• WORK PLATFORM with aluminum structure.• TOWER m 1,70• TOP TOWER H m 0,90 optional • 4 STABILIZER braces with locks.• GUARD RAIL EN 1004. optional • 150 mm wheels with brakes, stell base, allow use without ballast.• OPTIONAL: extractable adjustable feet
SYSTEM 120X200 Tower size: m 1,20 x 2,00EN 1004 class “3” maximum load capacity kg 390 and up to 12mtr height or 15mtr with anchorage System is the big range of mobile access tower in galvanized steel, 6 interchangeable sizes, quick and easy to assemble, designed, tested and certified according to European standard EN 1004. The strong steel structure allows to work in the absence of oscillations, the galvanized treatment protect the surface from the rust.• EN 260, Ø 45 mm round steel pipe• Made of galvanized rust-resistant steel.• New wheel EN 1004• BASE: ø 200 mm wheels with brake, EN 1004 certified, spirit levels to check horizontality. (OPTIONAL). Nr. 4 adjustable telescopic feet with anti-unscrewing device.• TOWER: standard H 1.50 m with crossbars. To facilitate climbing from the inside, as per European standard EN 1004 frames have rungs with a 30 cm pitch and anti-slip ribbing.• WORK PLATFORM: EN 1004 Standard aluminium bearing structure
STELLA BASIC Lightweight and durable aluminum domestic ladder, with arc closed parapet height 600 mm. Packaging in shrink.• Quick-release coupling platform in steel, size 250×265 mm for maximum security• Hook for bucket• Antiopening belts in size 6-7-8 steps• Antislip rubber feet
TITAN 2 can reach 3.00 m height, perfect for decorating and maintenance works, it can be compacted to allow passage through doorways and along corridors. 30 mm, tubular, light, non bulky, rust-resistant, assembled in just a few minutes. The double work platform allows multi-level work; the wheels, with brakes, ensure stability, safety and easy movement. n. 4 Ø 100 mm wheels, with brakes.
GRIM with round pipe mm 35 can reach m 7,10 height. Light and easy to carry, with base size 0.75 x 1.65 m in right for narrow spaces. At the height of 2.00 m, assembled on normal bases, it can be squashed to allow passage through doorways and along corridors• 3 TYPES OF BASES: Normal with, 4 Ø 100 mm wheels with brak s, according to Italian legislative decree 81/2008.Normal EN 1004 with 4 Ø 150 mm wheels with brakes, according to EN 1004. Extractable EN 1004 with 4 Ø 150 mm wheels with brakes suitable for not level floor, according to EN 1004.• TOWER: standard H 1.70 m
SYSTEM 100X180 EN 1004 class “3” maximum load capacity kg 295 and up to 10.5mtr height System is the big range of mobile access tower in galvanized steel, 6 interchangeable sizes, quick and easy to assemble, designed, tested and certified according to European standard EN 1004. The strong steel structure allows to work in the absence of oscillations, the galvanized treatment protect the surface from the rust.• EN 260, Ø 45 mm round steel pipe• Made of galvanized rust-resistant steel.• New wheel EN 1004• BASE: ø 200 mm wheels with brake, EN 1004 certified, spirit levels to check horizontality. (OPTIONAL). Nr. 4 adjustable telescopic feet with anti-unscrewing device.• TOWER: standard H 1.50 m with crossbars. To facilitate climbing from the inside, as per European standard EN 1004 frames have rungs with a 30 cm pitch and anti-slip ribbing.• WORK PLATFORM: EN 1004 Standard aluminium bearing structure. The blue nylon compound hooks allow perfect securing of the platform to the scaffold structure. The wooden anti-slip platform is provided with a comfortable trap door allowing operator to pass from one floor to another. Galvanized steel toeboards prevent accidental fall of persons and things. Each work platform kit comes complete with parapet bars.
